  Push/Pull (Straight Line Action)

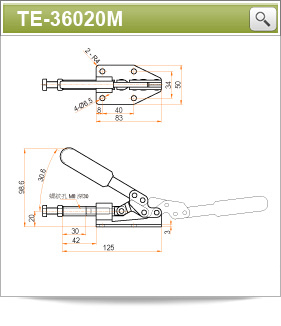

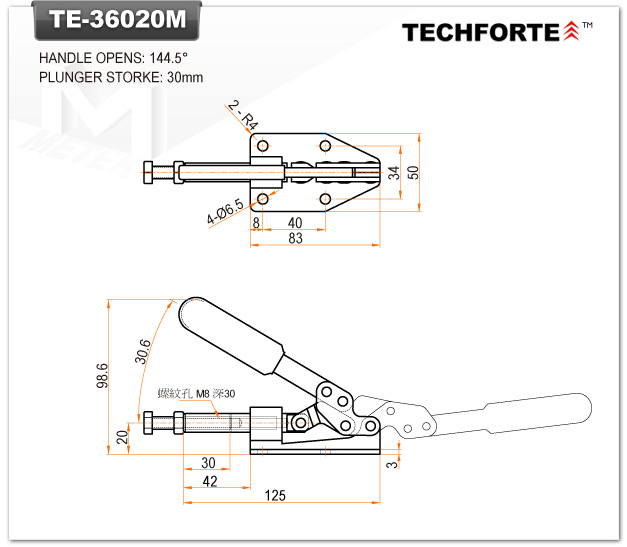

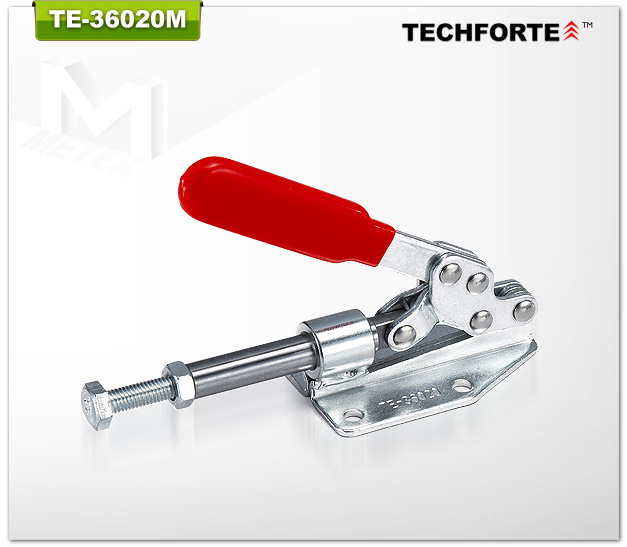

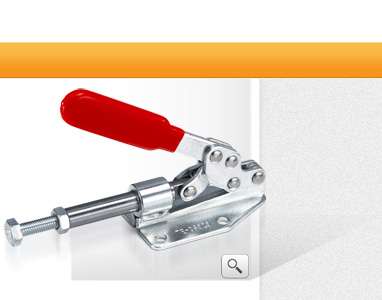

TE-36020M
  Clamps>Toggle>Push/Pull>TE36020M


■  TE-36020-K has a key way to keep the plunger
     from rotating.
■  WEIGHT: 345g
■  HOLDING CAPACITY: 180kg
■  SPINDLE SUPPLIED: TE-SA-085012
■  HANDLE OPENS: 144.5°
■  PLUNGER STROKE: 30mm
