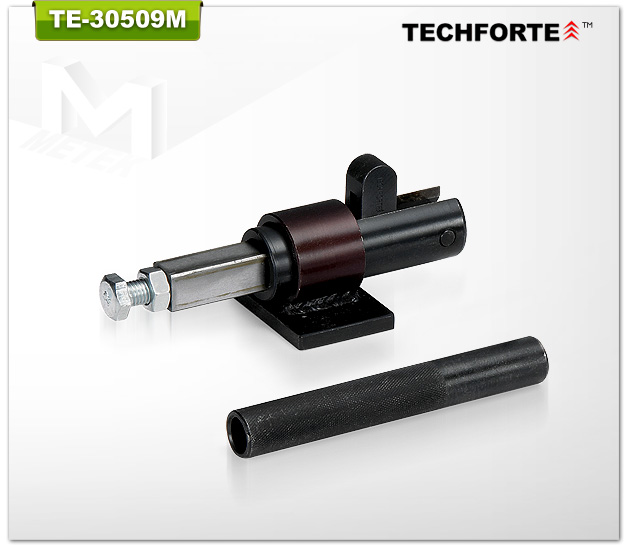

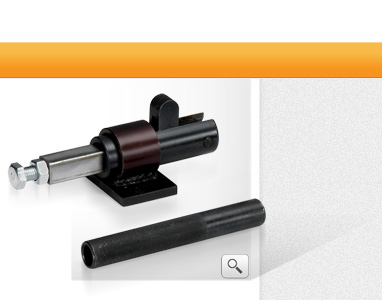

High strength steel consturction and precisely
broached body for square plunger, these clamps can be used as pin locating gauges.
Hardened steel pins and bushing are fitted at pivot points.

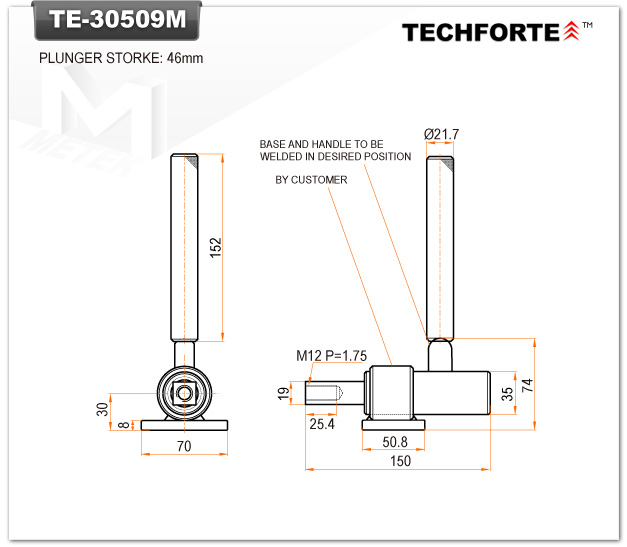

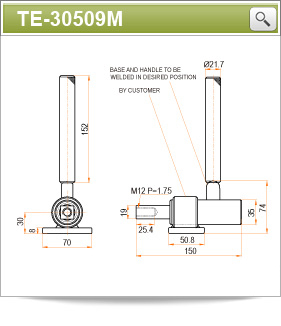

Supplied with separate handle and base.  Users can weld them at a desire position.
Clamp can be mounted by drilling holes on the
base or can be welded at a proper position.
HANDLE OPENS: 80°
